SSPT7F-7PF20-R
Manufacturer:
Seiko Instruments
Mfr.Part #:
SSPT7F-7PF20-R
Datasheet:
Description:

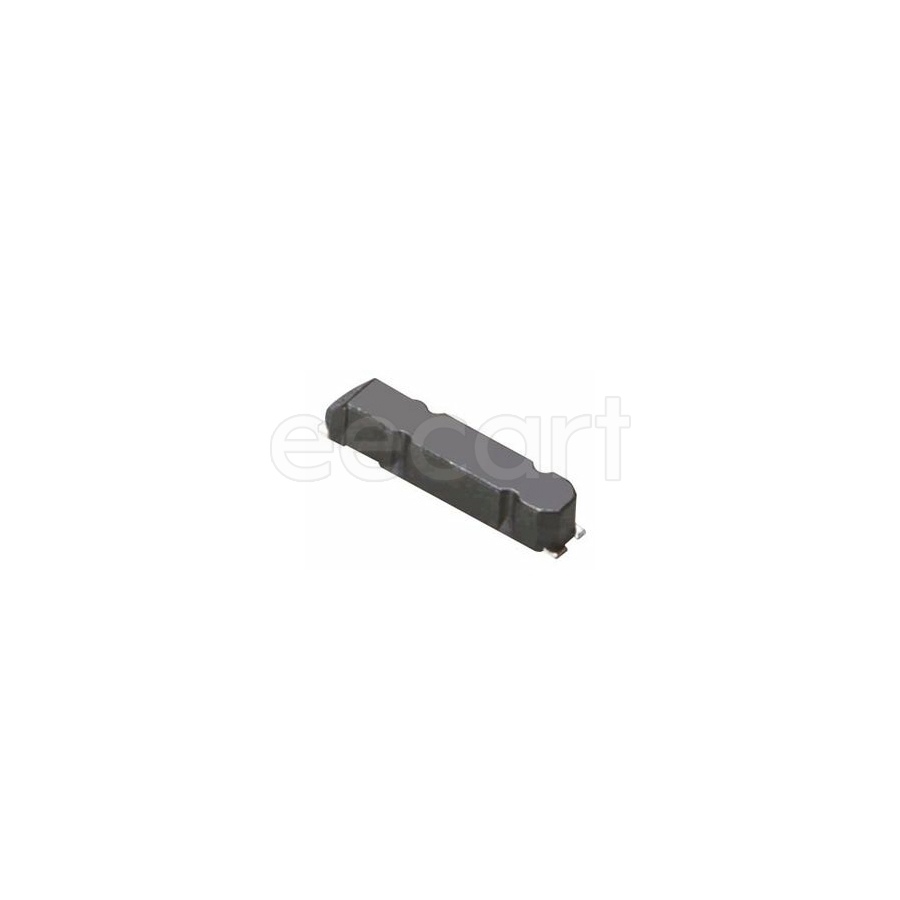

Crystals 6.7mmL×1.5mmW×1.4mmH SMD/SMT 32.768 kHz 7 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.002 % |
| ESR (Equivalent Series Resistance) | 65 kΩ |
| Length | 6.7056 mm |
| Width | 1.4986 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.397 mm |
| RoHS | Compliant |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 0.002 % |
| Load Capacitance | 7 pF |
| Schedule B | 8541600080 |
| Operating Mode | Fundamental |
| Packaging | Reel |
| Height - Seated (Max) | 1.4 mm |
| Drive Level | 100 nW |
Stock: 32070
Distributors
pcbx
pcbxUnit Price$0.35635
Ext.Price$0.35635
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35635 | $0.35635 |
| 10 | $0.30974 | $3.09740 |
| 25 | $0.29282 | $7.32050 |
| 50 | $0.28081 | $14.04050 |
| 100 | $0.26917 | $26.91700 |
| 300 | $0.25629 | $76.88700 |
| 500 | $0.24402 | $122.01000 |
| 1000 | $0.23393 | $233.93000 |
| 3000 | $0.24066 | $721.98000 |
